Injection molding capabilities

Presses to 385 tons, scientific molding with RJG eDART® process monitoring, and a team with over 100 years of combined molding experience. Here is what is on the floor and how we run it.

At a glance

Capability	Detail

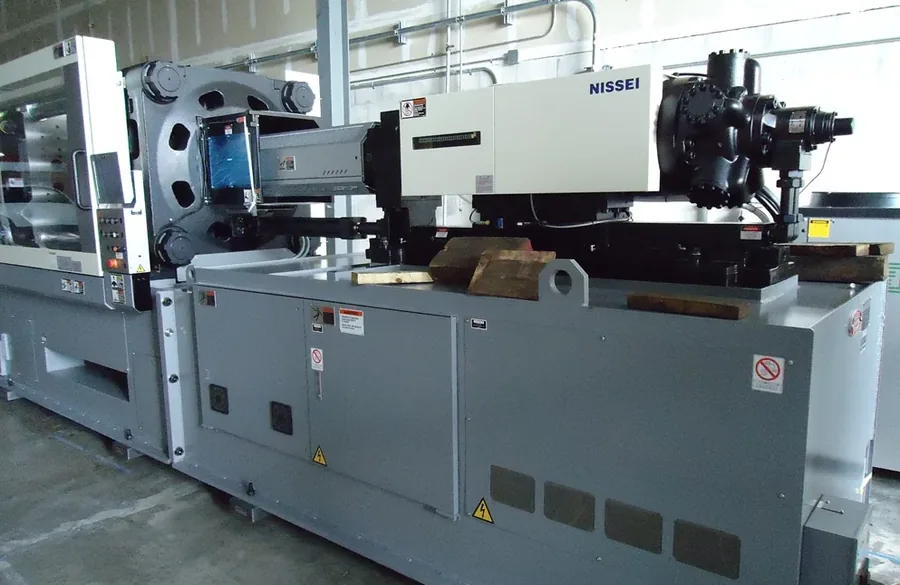

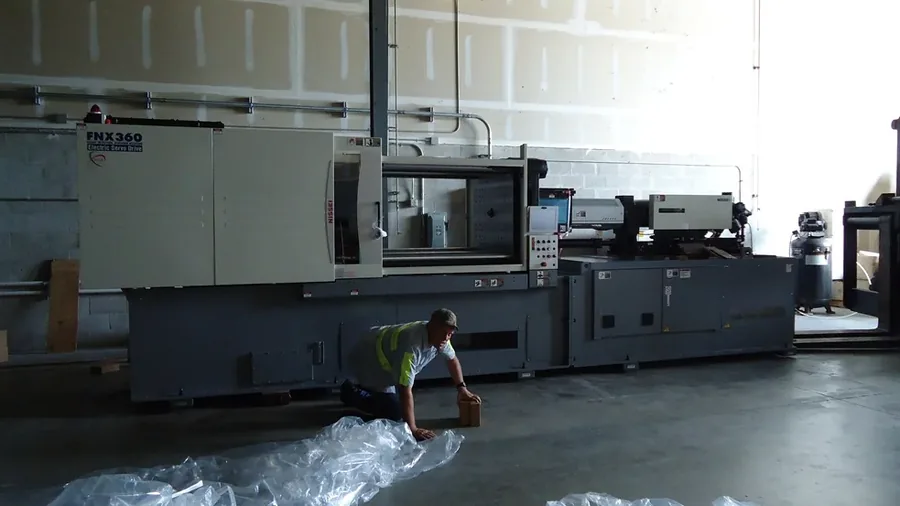

Clamp force	Presses up to 385 tons
Process monitoring	Two RJG eDART® systems with in-mold cavity pressure sensing
Process development	Led by an RJG-certified Master Molder® I and II
Experience	Over 100 years combined across our molding team
Material volume	225,000 lb of PC/ABS processed every year
Product certification experience	Our own molded products are UL Listed and carry CE and UKCA marks; UL is on site monthly for follow-up inspection
Work types	New product launch, mold transfers, overflow and outsourced work for other molders
Customers	B2B, OEM and consumer-product companies

Scientific molding

We develop processes from the plastic's point of view. Cavity-pressure sensors and eDART® monitoring tell us what is happening inside the mold on every shot, so we can set a process window, hold it, and prove we held it. When a part drifts, it is caught at the press. Read how it works.

Materials

PC/ABS is our highest-volume material, at roughly 225,000 lb a year. We also run other engineering and commodity thermoplastics. Tell us the material on your print, or the performance you need if you have not chosen one, and we will tell you whether it fits our equipment and experience.

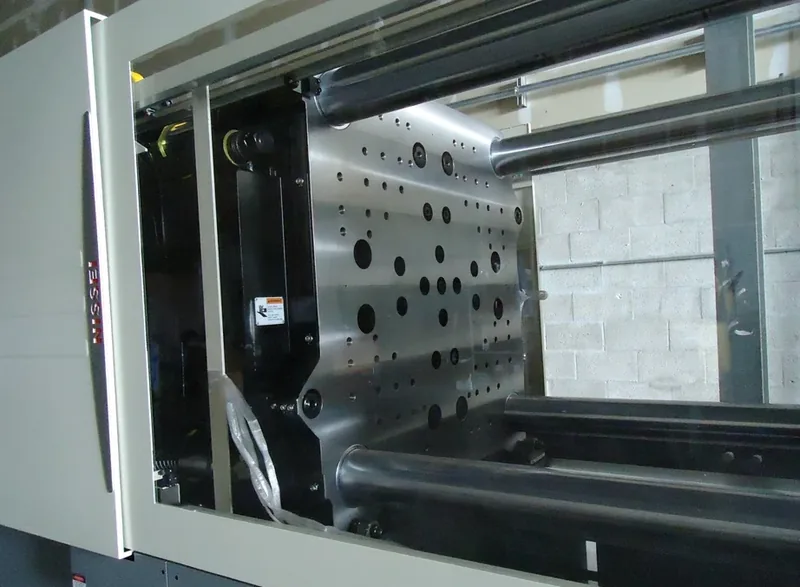

Sizing your mold to our presses

If you already have tooling, send us:

• Mold dimensions (height, width, stack height) and weight
• Locating ring and sprue bushing details
• Shot weight and material
• Hot runner or cold runner, and any temperature control or core-pull requirements
• Your current process sheet, if you have one
